Flash Tester

Introduction: Clean the polished lens thoroughly to facilitate comprehensive inspection of the product for appearance defects such as bubbles, white spots, scratches, etc.

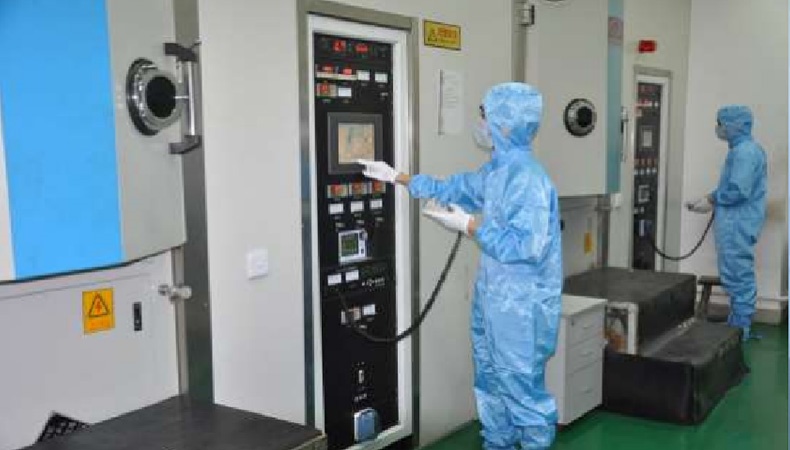

Vacuum Coating Machine

Introduction: According to the product needs of different customers, anti fingerprint film (AF), anti reflective film (AR), different colors and other treatments are added to the lenses.

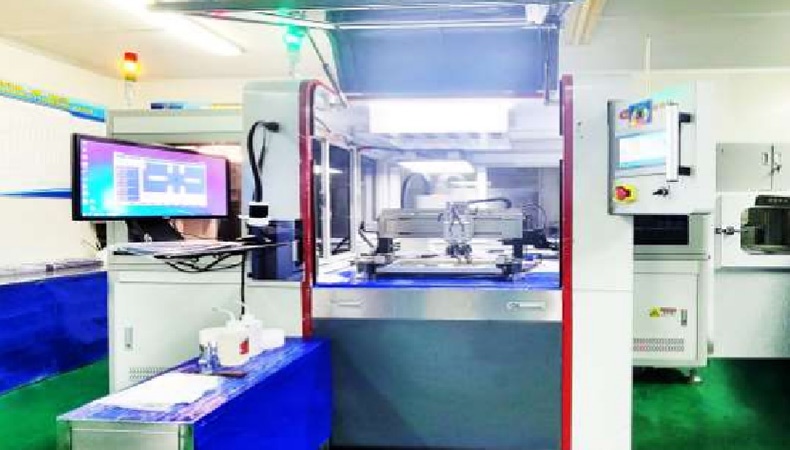

Automatic Screen Printing Machine

Introduction: According to the customer's product application requirements, ink printing such as name, pattern, text, scale, etc. is carried out on the lens.

Ultrasonic Cleaning Machine

Introduction: Clean the polished lens thoroughly to facilitate comprehensive inspection of the product for appearance defects such as bubbles, white spots, scratches, etc.

Double sided Grinding Machine (Polishing)

Introduction: According to customer requirements, the thickness tolerance of the finished product is controlled to ensure no defects such as white spots, large scratches, broken edges, and shiny body.

Double sided Grinding Machine (Precision Grinding)

Introduction: According to customer requirements, the thickness tolerance of the finished product is controlled to ensure no defects such as white spots, large scratches, broken edges, and shiny body.

Automatic Light Edge Machine

Introduction: Smooth edge treatment is carried out according to the product's edge tolerance to achieve high glossiness, no sand holes, no broken edges, and no scratches.

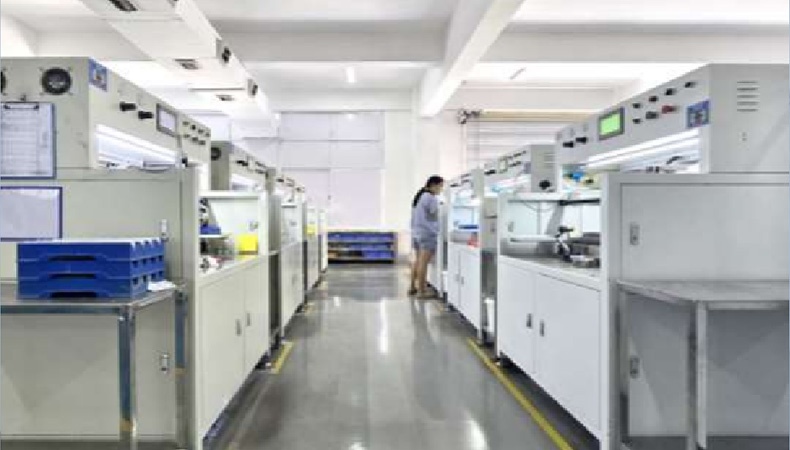

Automatic Edge banding Machine

Introduction: According to the angle and size requirements of the customer's drawings, chamfer treatment is carried out at the edge of the lens and the junction of the lens and the body.

Annealing Furnace (Coarse Grinding/Milling)

Introduction: According to the requirements of the customer's drawings, the embryo is preliminarily formed to prepare for the precision grinding of the subsequent process.

Annealing Furnace

Introduction: By using suitable annealing curves, the mechanical and internal stresses of sapphire blanks can be eliminated, improving the yield of subsequent processes.

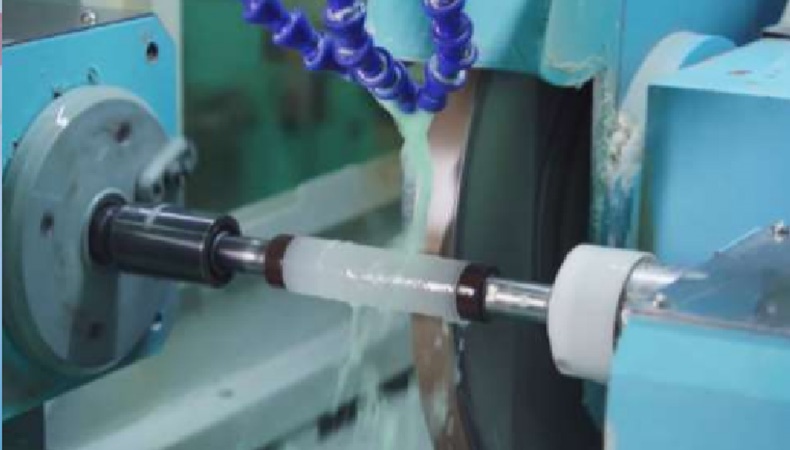

External Grinding Machine

Introduction: According to the size requirements of the customer's drawings, the outer circle size of the lens is processed to the outer diameter specification of the finished lens.

Double sided thinning machine

Introduction: Double sided thinning is performed on the embryo cut from the wire to eliminate warping and parallelism, achieving the preset thickness for the subsequent process.

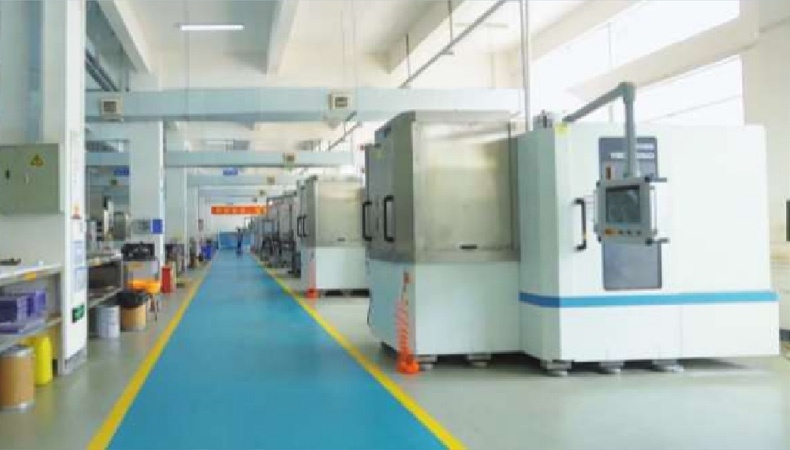

Multi line cutting machine

Introduction: After fixing the crystal rod according to the thickness requirements of different lenses, multiple blank pieces of the same thickness are simultaneously cut out.

Heartless Grinding Machine

Introduction: The outer ring of the crystal rod is finely ground to reduce the surface roughness, while controlling the diameter of the crystal rod reasonably.

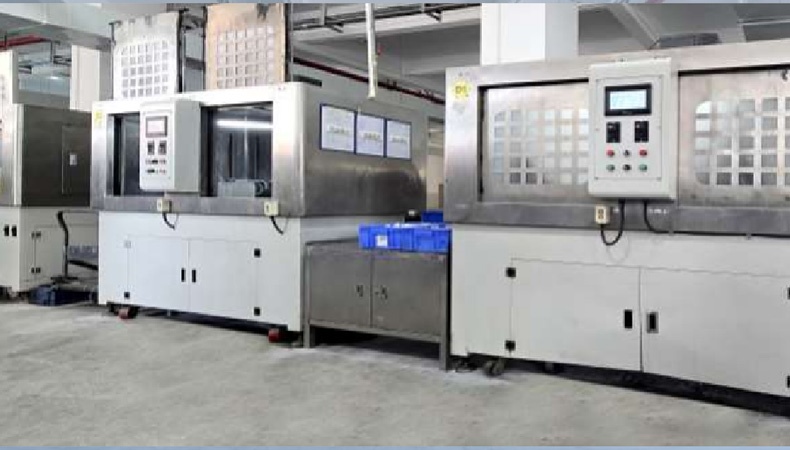

Rod Cutting Machine

Introduction: Remove the adhesive on the end face of the crystal rod, and cut the head and tail of the rod material flat to improve the material yield of the subsequent process.

Automatic Rod Digging Machine

Introduction: According to the size and crystal orientation requirements of different lenses, extract suitable crystal rods from the ingot.

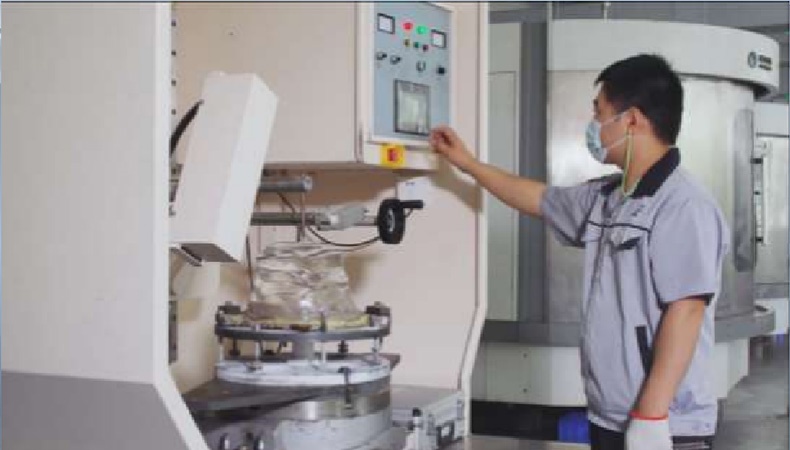

Sapphire Crystal Orientation Instrument

Introduction: Based on the customer's order requirements, different crystal orientations of the crystal are measured according to specific crystal orientation directions and detailed requirements.

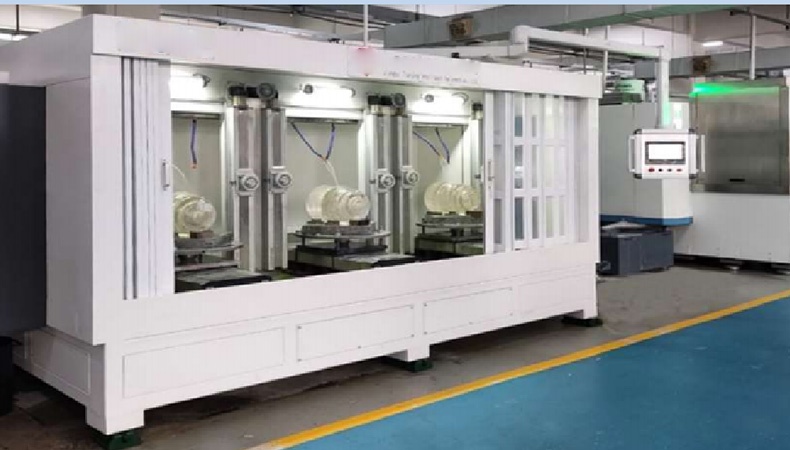

Sawing Machine/Single Line Cutting Machine

Introduction: The sapphire crystal ingot is preliminarily cut according to the size specifications of the subsequent process and the requirements of the order and product.

Sapphire Crystal Growth Furnace

Introduction: Growing high-quality and appropriately sized sapphire crystal materials to provide qualified raw materials for back-end processing.
